طابعات ثلاثية

3D PRINTERS

طابعات ليزر

LASER PRINTERS



    ملاحظة :

    يمكننا تأمين أي موديل يريده الزبون .. أرسل معلومات مفصلة

    وصور إلى واتس أب : 0969515995

    وسنعلمك بالأسعار ومدة التسليم


لمعرفة التفاصيل اضغط هنا


محور برغي مع عزقة لطابعة ثلاثية و CNC

3D / CNC Printer T8 Lead Screw

طول 300 مم

طول 500 مم

طول 1000 مم

عزقة مع نابض

T8 Anti Backlash Spring Loaded Nut




فيديو توضيحي : https://www.youtube.com/watch?v=I5elJpaq2qo









فيديو يوضح عملها :

https://www.youtube.com/watch?v=GPpm8DJ7DOI

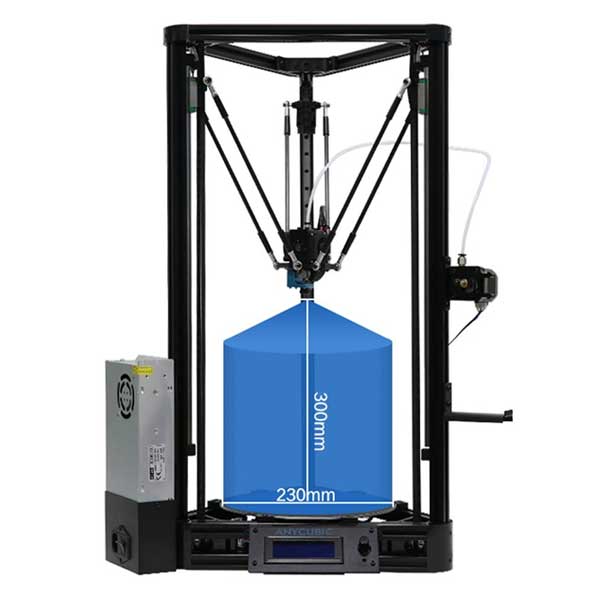

3D Kossel Linear Plus (Kit) ANYCUBIC

Specification:
  • Printing Technology: FDM (Fused Deposition Modeling)
  • Layer Resolution: 0.1-0.4 mm
  • Positioning Accuracy: X/Y/Z 0.01mm
  • Supported Print Materials: PLA, ABS, HIPS, Wood
  • Print Speed: 20~60mm/s
  • Travel Speed:  60mm/s
  • Nozzle Diameter: 0.4 mm
  • Extruder Quantity: Single
  • Build Size: Ø230×300mm


  • Temperature:

    Operational Print Bed Temperature:   100ºC

    Operational Extruder Temperature: 260ºC Max

    Ambient Operating Temperature: 8ºC - 40ºC



  • Software:

          Input Formats: STL, .OBJ, .AMF

          Slicer Software: Cura

          Cura Output Formats: GCode

          Connectivity: SD Card, USB line

  • Electrical:

    Input Rating: 110V/220V AC, 50/60Hz



  • Physical Dimensions:

    Printer Dimensions:  380mm (Δ) × 680mm (Height)

    Net Weight:   ~7kg




CNC 3018 PRO  طابعة حفر وليزر

+ LASER 500mW , 2500mW , 5500mW,

15000mW     يمكن اختيار رأس الليزر المناسب لعملك

ملاحظة : رأس الليزر 15000mW  للطباعة على المعادن

3 Axis CNC Router GRBL Control DIY Adjustable Speed Spindle Motor Wood Engraving Machine Milling Machine Offline Controller XYZ Working Area 300x180x45mm

Specification:

Profile Dimensions: 33x40x24cm
Engraving area: 30x18x4.5cm
Spindle: 775 spindle motor
Softwear: GRBL control systems
support system: 24V 5.6A adapter
Stepper motor: fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M
Spindle: 775 spindle motor (12-36V) 24V:10000r / min
Supported System: Windows XP / Win 7 / Win 8 / Win 10 / Linux.
Drill bits: tip 0.1mm ,20 degree , diameter3.175mm. the package include 10pc.
clamps: 4 pcs, Hold the thickness of 0-30mm,size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm


Features:

– New Version: CNC 3018-PRO is an upgraded version of 3018. Control software: GRBL; Working area: 30x18x4.5cm; Spindle: 775 spindle motor (12-36V) 24V:10000r / min. Supported System: Windows XP / Win 7 / Win 8 / Win 10.
– The main two advantages of offline controller : 1,do not need to connect the computer; 2,do not need to download files. Manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully open or close cooling fan.
– Download the English manual and software: https://my.pcloud.com/publink/show?code=XZvKDA7ZjB9MzW6zbnyxxEABIkjNDSpxuvwX
– This engraving machine can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material. Drill bit can not engrave hard metal, jade or other hard materials. Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack.
– Plastic body with a profile, small size, light weight, USB interface, GRBL control systems, learn to use the preferred entry.
يمكن تركيب محرك حفر أو رأس ليزر حسب العمل المطلوب

فيديوهات توضح عملها

https://www.youtube.com/watch?v=KiLGf_VtV_Q

https://www.youtube.com/watch?v=vD95wHqEiDk


طابعة ليزر

50×65cm Engraving Area Laser 5500mW  Engraving Machine



This 5500mW DIY desktop blue laser engraving machine is ideal for amateur laser engraving usage with grey scale printing, low-light positioning and freedom positioning only need you to connect it to the computer, then you can print any pictures your like with your own creativity.



 Specifications:

Material : stainless steel and acrylic

Working Voltage :DC 12V

Laser Power:, 5500MW

Engraving Area:65x50cm(maximum)

Size:72x63cm

Control software: benbox software support power can be adjusted, weak light positioning

Engraving Material Note:

1.can engraving materials: wood, bamboo, plastic ,paper, leather,bank card, rubber

2.can not engraving material: metal, stone, ceramic, shell, light-reflecting material, transparent material

Cutting Material: It can only cut foam, paper, thin leather material.


CNC Parts Set1  طقم محاور ماكينة حفر

15pcs 200mm Optical Axis Guide Bearing Housings Aluminum Rail Shaft Lead Screw Rod Slide Bushing Shaft Coupling CNC Parts

Specification:

Type: Sliding Rail

Glide Path: Linear Guide

Material: 45 Steel

Accuracy Class: H

Slide Fixed Way: Lock Type, Lock Type



Features:

Non-toxic and tasteless, environmental protection,

small size, transmission power of large,

stable performance.  Mainly used for industrial automation equipment,

stepper motor rails. Such as 3D printers,

engraving machine,

XYZ module, slide, lifts, etc., widely used.



Package Included:  (650g)

2 pcs x 8x200mm Steel Optical Axis
2 pcs x KP08 55x13x29mm Zinc Alloy Pillow Block Bearing
4 pcs x SK8 42x32x14mm Aluminum Rail Shaft Support
1 pcs x 200x8mm Stainless Steel Lead Screw Rod with Nut
4 pcs x SC8UU 8x34mm Slide Bushing
2 pcs x 5x8mm D19L25 Flexible Shaft Coupling


Notice:

1.Please allow 1-3mm error due to manual measurement.Pls make sure

you do not mind before you bid.

2.The color may have different as the difference display,

pls understand.


CNC Parts Set2            محور حلزوني 300 مم

THSL-300-8D 300mm Lead Screw 8mm Thread Lead Screw with Copper Anti-Backlash Nut

(120g)


EleksMaker® EleksLaser-A3 Pro 2500mW Laser Engraving Machine CNC Laser Printer



فيديو يوضح عملها :

https://www.youtube.com/watch?v=ekjyq1LGh24

Specifications:

Brand

EleksMaker

Model

EleksLaser-A3 pro

Wavelength

445nm

Control Board

EleksMana SE

Communication Port

MircoUSB

Laser Quick Replace

Support

Stepper Motor

42H34S-1304A

Power Input

AC100-240V

System Support

Win XP/7/8/10

Engrave Mode

Photo, Word, Scan, outline, Pixel Laser Engraving

Supported Formats

jpg, bmp, svg, G-code

Material

Stainless Steel and Acrylic

Working Voltage

DC 12V

Working Current

DC 4-5A

Laser Power

2.5W / 1.6W

Control Software System

EleksCam, T2-Laser, GrblController, LiteFire, Laser GRBL, etc.

Engraving Accuracy

0.01mm

Engraving Area

30x40cm / 11.81 x 15.75inch (maximum)

Engraved object height limitation

No Limitation

Packaging Size

58x40x14cm / 22.83x15.75x5.51inch (L*W*H)

Assembled Product Size

60x46x18cm / 23.62x18.11x7.09inch (L*W*H)

Package Weight

4.90kg

Can Engrave

Wood, Plastic,  Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc.

Can not engrave

Metal, Stone, Ceramics, Glass, Reflective or Transparent Material

Certification

CE, FCC, FDA(Please contact us if you need them)

Function

ideal for amateur laser engraving usage low-light positioning and freedom positioning functions.

Features

30X38cm ultra large engraving area,gantry shape design, no engraving height limitation.

Three stepper motor drive providing faster moving speed.

 violet laser module with heat sink, high laser engraving power and long-term available.

can print any pictures easily

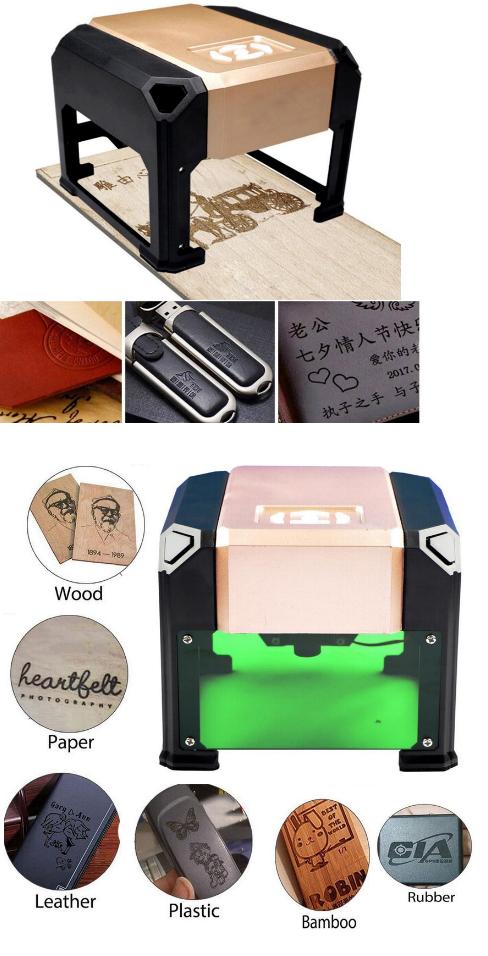

طابعة ليزر 3000mW --

تطبع على البلاستيك – الخشب – الكرتون - الجلد -  الموبايل .........

فيديو يوضح عملها :

https://www.youtube.com/watch?v=lCmCGszwmsE

Specifications:


Material: ABS(Acrylonitrile Butadiene Styrene plastic) + Aluminium alloy
Color: black+purple
Voltage: AC 110-220V
Laser Power: 3000 mW
Positioning Accuracy: 0.01mm
Engraving Range: 80x80mm/3.1x3.1in
Size: 15.2 x 16.6 x 14.3 cm / 5*6.5*5.6in
Applicable Range: Plane surface

Operating System: WIN-97/03/7/8/10 (▲Windows Vista / XP

,Unix,Linux are not supported)
Picture Format: JPG / GIF / BMP / DIB / ICO / CUR /PNG




3D CREALITY ENDER 3





Product Description:



Net weight:7KG

Loading weight:8.5kg

Printing size:220*220*250mm

Machine size:440*410*465

Filament:PLA/ABS/Soft rubber/woodeEtc.

Filament diameter:1.75mm

Nozzle diameter:default 0.4mm, Custom Options: 0.3/0.2MM)

Speed:≤200mm/s

Accuracy:±0.1mm

Working mode:Online or SDoffline

Printing thickness:0.1-0.4 adjustable

Voltage:24V

Rated power:120W

Actual power:360W

Power requirement:110-265V input;24V output

File Format:STL,OBJ,JPG,PNG,Gcode

Operating page:English

Drawing interface:English

Software:Cura,Repetier-Host,simplify3D

Operating system:WIN,XP,MAC,Linux,Vista



                                                      فيديو :

https://www.youtube.com/watch?v=sKR0GUM307g


فيديو :

https://www.youtube.com/watch?v=tFfMPjKhF8c

3D CR-10S


Filement PLA  1.75


CNC 3018 + Laser 500mW

CNC 3018 + Laser 2500mW

CNC 3018 + Laser 5500mW

CNC 3018 + Laser 15000mW


Control software GRBL control
Construction Aluminum + plastic
Working area 300*180*40mm
Frame size 400*330*240mm
Spindle 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
Step motor 1.3A    0.25N.m
Power supply 24V     5.6A
Supported system Windows XP/ Win 7/ Win 8/ Win10
Laser



500mW  12V 405nm

or

2500mW , 5500mW, 15000mW

Drill bits Diameter: 3.175mm  tip: 0.1mm  length: 30m





      فيديو :



https://www.youtube.com/watch?v=07afKtcdXOU



      لمزيد من المعلومات .. اضغط هنا




         فيديوهات توضح عمل الطابعة :



https://www.youtube.com/watch?v=vv337BbLLFU



https://www.youtube.com/watch?v=eyE1_Wy3VQc



https://www.youtube.com/watch?v=4bOQ9wfEg1Q





          الأسعار في قسم المبيعات : واتس أب  0969515995



طابعة  ثلاثية الأبعاد     3D  MD-16

Parameter:

  • Printing Size: 160*160*160mm

  • machine body size: 300*350*395mm

  • Printing Precision: 0.05-0.3mm

  • Nozzle diameter: standard 0.4mm ( we also supply 0.6mm / 0.8mm / 1mm )

  • positioning precision: Z axis 0.0020mm  X/Y axis 0.010mm

  • Print tech: FDM ( Fused Deposition Modeling)

  • Shipping Box: 470*400*530mm

  • Machine weight: 13kg

  • Packing Weight: 22kg

Electrical Parameter:

  • Interface: USB / SD memory card

  • AC Input: 95-265V 50/60Hz

  • Machine Power: 350 W

Software:

  • Files type: STL, G-code

  • Operating software: Cura

  • Support system: Windows, Linux, Mac ox

  • 3D Design Software: Solidworks, Pro/ E ,UG, Maya, 3DX Max, Aduo CAD, Rhino etc.

Constructure:

  • Motherboard: 32 subdivision High Speed Motherboard

  • Motor: 42 stepper motor

  • Extruder: single (also could print multi-color)

  • Material: Stainless Steel

  • Certification: CE, FCC, ROHS




رأس ليزر 5.5W

450nm 5500mW 12V High Power TTL Adjustable Focus Blue Laser Module

Technical Parameters:

--Laser wavelength: 450nm (blue violet)

--Spot type: dotted (adjustable)

--Light power: 5.5 Watts (5500mW)

--Drive mode: external ACC constant current drive

--Cooling method: forced air cooling

--Operating voltage: 12V DC

--Power supply interface: 2 * 2.54

--Control interface: 2 * 2.54 (TTL control switch, PWM control power)

--Shell material: aluminum, surface anodized

--Module material: copper

--Collimator lens: optical glass coating

User must read:

1. Laser module power is relatively large, to prohibit the exposure of the eye, otherwise it will cause permanent blindness,

  the consequences at your own risk.

2. Do not use in flammable and gas atmospheres to avoid fire and explosion.

3. Prohibit children from exposure to this laser product

4. Do not open the module to avoid damage.



  • Wear laser goggles when using the laser head to prevent burns
  • Do not use for more than 60 minutes in a row, otherwise the life of the LD will be affected by overheating

  • Feature:
    1. 350 mW focusable violet laser module
    2. Aircraft aluminum heatsink with cooling fan

        ensure long working time continuously
    3. Equipped with constant-current driver board ensure stable output

        optical power, suitable for industrial
        engraving machine equipment usage

    LASER HEAD 350MW 405NM

    Description:
    This 350mW focusable violet laser module is

    suitable  for mini engraving machine equipment usage

    with stable output power and long lifetime.

    Specification:

    Heatsink Material

    aircraft aluminum

    Output Power

    350 mw

    Wavelength

    405nm(Violet Laser)

    Voltage

    DC 12V

    Current

    500mA

    Beam Shape

    dot(focusable)

    Life Time

    6000 hours

    Working Temperature

    -40-75℃

    Cable Length

    1.1m(43.31")

    Dimension

    67x33x33mm




    LASER HEAD 2.3W 450NM



    Description OF PRODUCTS:



    1,Wavelength:445nm~450nm

    2,Output Power:2300mW

    3,Adjust the focus:Yes(By fingers),<0.5mm at 1CM~30CM;

    4,Working Voltage:12V

    5,Power supply:>2A;




    Applications:
    1, micro-laser engraving machine
    2, small laser cutting
    3, cigarette, match point
    4, DIY laser manufacturing
    5, medical equipment, etc.

    LASER HEAD 400MW 405NM

    Features:
    Blue-violet laser
    Voltage: 12V
    Output Power: 400mw
    Working Current: 170mA/900mA
    Working temperature: -40 degree --75 degree
    Wavelength: 405nm
    Working life: 10,000 hours
    Working medium: Semiconductors
    Shell material: aviation aluminum
    Output Terminal: dot
    Focus: Adjustable
    Output band: visible light
    Dimensions: 33MM * 55MM DC cable length 10 cm (can focus)
    Structural features: aluminum alloy shell (heat deepen teeth) + imported laser diode + constant current driver board




    LASER HEAD 500mW 405nM



    Feature:



    Wavelength: 405nm

    Power: 500mW

    Voltage: 12V

    Idemitsu form: dot

    Focus Mode: tuning knobs

    Lens Material: dedicated optical coated glass

    Cooling: forced air

    Shell material: aluminum (anodized surface)



    Product advantages:


    1, integrated industrial design
    2, long working hours



    Can not processed metals, glass, stone, ceramics, jewelry, silver, reflective material, translucent material.

    Carving wood / bamboo / paper / plastic / leather / rubber / horn.

    Can cut paper-thin / light wood / sponge paper / felt / fabric / sticker.


    LASER HEAD 5W 450NM  With Power Supply

    [Features]
    1. Focus adjustable
    2. Compact size
    3. Efficient heat dissipation

    [Specifications]
    Product Name: 450nm 5W laser head
    Wavelength: 450nm
    Output Power: 5W
    Laser Shape: Dot
    Operating Voltage: 12V
    Operating Current: <1200mA
    Optical Section: Focusing lens
    Product Material: Aviation aluminum
    Heat Dissipation Method: Aluminum heat sink +  fan cooling
    Operating Temperature: -40
    ~75


    LASER HEAD 3.5W 450NM  With Power Supply

    [Features]
    1. Focus adjustable
    2. Compact size
    3. Efficient heat dissipation

    [Specifications]
    Product Name: 450nm 3.5W laser head
    Wavelength: 450nm
    Output Power: 3.5W
    Laser Shape: Dot
    Operating Voltage: 12V
    Operating Current: <10
    00mA
    Optical Section: Focusing lens
    Product Material: Aviation aluminum
    Heat Dissipation Method: Aluminum heat sink +
     fan cooling
    Operating Temperature: -40
    ~75


    LASER HEAD 1000mW



    12V Laser Module 1W/1000mW 450nm Blue Dot Laser Head Focus Adjustable +Goggle Glasses +Power Adapter for Laser Engraving Machine

    Structural features

    Aluminum shell+ Imported laser diode+ K9 glass lenses+ Constant current driver board + Blue violet

    Application area

    hole-punching marking engraving machine;

    Technical parameters

    Product name

    semiconductor laser Module

    Product model

    M-33A450-1000-G

    Output Power

    1000mW

    Supply voltage

    12V

    Operating Current

    1500mA

    Wavelength

    450nm

    Core components

    Nichia

    Spot pattern

    dot

    Lens

    K9 glass lens

    Optical components

    focusing lens (focusable)

    Working Life

    8000 hours

    Material

    Aircraft Aluminum

    Dimensions

    33 * 55mm
